Copper Granulator
General Description
This machine used for crushing waste/scrap copper cable, Tthe feeding material can be copper wire,Tel-wire,net-wire,then separate inside copper granules
and plastic cover granules. The whole production line has unique structure,big process capacity and low power consumption.With high separation rate,the separation is conducted by several parts.This equipment has not only improved the purity of copper,but also reduced the pollution to the environment.
Advantage
(1). High automatic degree, 2 persons are enough for operating.
(2). High hardness and wear resistance material of knife.
(3). Environmental friendly, no waste water, waste smoke, no dust pollution.
(4). The overall modular structure made it convenient to transportation and installation.
(5). Any improvement are under the considering of convenient maintenance and easy operate.
(6). Reasonable structure design of feeding and discharging system on electrostatic separator made the whole machine run with stable performance and long lifespan.
Copper Granulator production Line
It's minaly composed of 5 majo machine in the whole production line
1 Feeding conveyor
2 Copper wire crusher
3 Output conveyor for mixing copper and plastic
4 Magnetic system
5 Dust Collector.
6 Blower
7 Gravity Separator
8 Plastic conveyor
9 Copper conveyor
10 Vibiration screen*2
Parameter Of Copper Granulator | |||
Power | 55KW | ||
Voltage | 380V/220V or Customized ( 50 HZ / 60 HZ ) | ||
Dust removal fan power | 3+1.5KW | ||
production capacity | 700-800Kg / H | ||
processing range | Φ0.2-Φ20mm | ||
recovery rate | 98% or more | ||

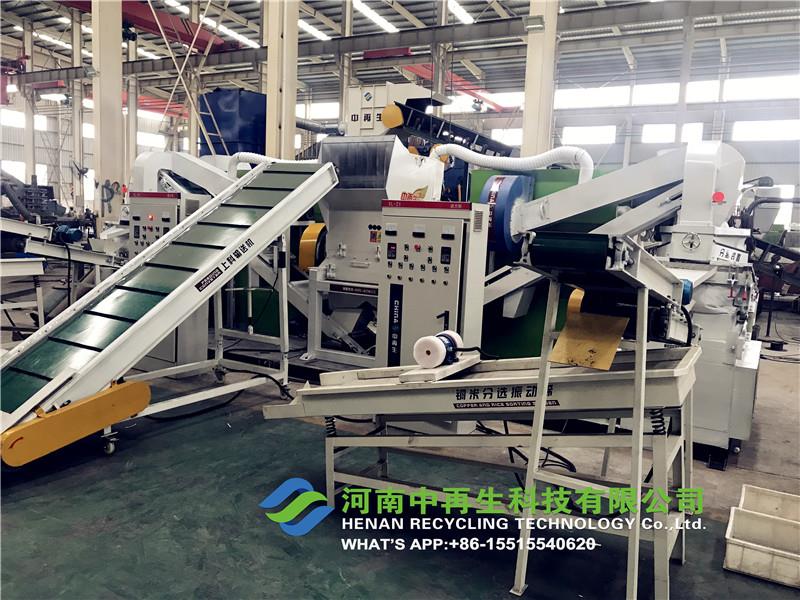

Copper Granulator machine photos
Feeding material
Output material(Copper and plastic and mixing)
Some Tips For Customer:
1 Established:we are a manufacturer from 2012.and Headquaters from 1985.
2 Our factory address is : Xinyuan Road,wenxian industrial zone,henan Province,China.
3. Our factory airport: Henan Xinzheng International airport(CGO)
4. Qaulity:we have got CE, ISO, SGS, TUV, SONCAP certificate so far.
5. Delivery time :In general, about 30 days, customized machine will be delivered as the negotiation
with our clients.part popular machine in stock.
6. Customized:The machine can be customized as your need, Put on your logo is also available.
7. Packing :Our machine is film wrapped,and fixed in the container by steel wire.
8. Payment:So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid before delivery.
9.After-sale service:The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
10.Installation:All the machines will be tested well before delivered, and our machine are easy to be installed, if customer needs our assistance, we will be pleased to arrange the installation.
